Connecting Royal MCP to Claude

First — Install and Enable Royal MCP

Before connecting anything to Claude, Royal MCP needs to be running on your WordPress site. Three small steps:

Choose Your Surface

Pick where you’ll be using Claude. The setup steps differ by surface, but the underlying connection is the same Royal MCP server in all three cases.

claude.ai (Browser) and Claude Desktop — Identical Setup

Anthropic has unified the connector flow across claude.ai in the browser and the Claude Desktop app. The UI is identical, the steps are identical, and the OAuth handshake is identical. Whichever you use, follow the same instructions below.

The first time you connect, you’ll see the OAuth consent screen. Every time after that — on the same Claude account — Claude reconnects silently in the background, no consent prompt, no extra clicks. The two videos below cover both cases.

First-time setup — the new Claude wizard

Anthropic redesigned the Add custom connector wizard mid-August 2026. The flow now has up to four screens depending on how fast your WordPress site responds to OAuth discovery — the wizard imposes a five-second budget, which most WordPress sites will exceed at least occasionally. Both paths through the wizard work, and the wizard gets smarter after your first successful connection: subsequent setups on the same account tend to skip the fallback screen and auto-detect the right settings.

Open Settings → Connectors → Add custom connector

In claude.ai (browser): click your profile in the bottom-left → Settings → Connectors → Add custom connector. In Claude Desktop: Settings (gear icon) → Connectors → Add custom connector. You can also click the + button inside any chat window → Add connectors → Add custom connector.

Name it, then paste your MCP endpoint

Give it any name (e.g. My Site MCP). Paste your WordPress site’s MCP endpoint into the URL field:

https://example.com/wp-json/royal-mcp/v1/mcp

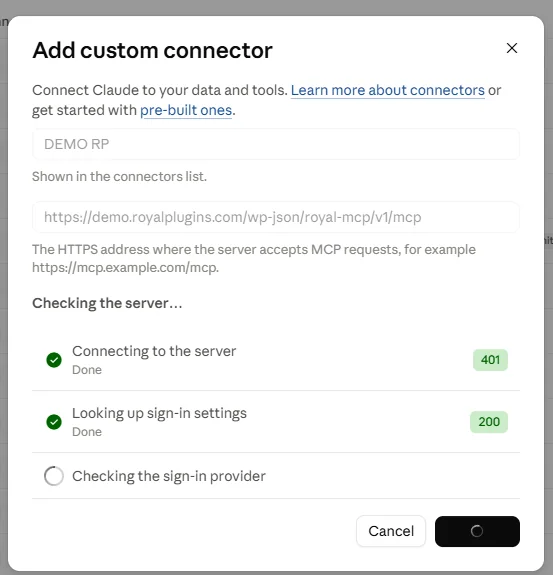

The wizard fires a three-step check: Connecting to the server → Looking up sign-in settings → Checking the sign-in provider. Two things can happen next — whichever one you see is normal.

Screen 1 — the wizard runs a three-step check with a five-second budget.

Path A — the check completes in under five seconds

The wizard closes and Claude opens a new tab or dialog with the OAuth authorization prompt from your WordPress site. Skip to step 6 below.

Path B — the check exceeds five seconds (very common; this is normal)

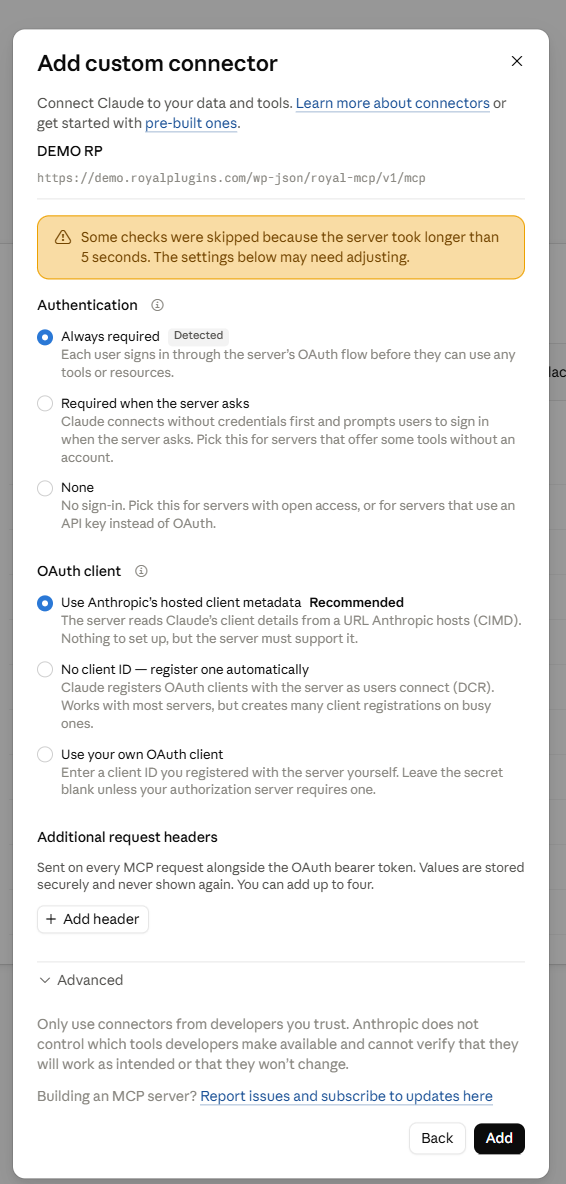

The wizard drops you onto a full options screen with a yellow banner reading “Some checks were skipped because the server took longer than 5 seconds. The settings below may need adjusting.” This is not an error — it’s a fallback flow.

Screen 2 — the wizard’s fallback options screen. Configure the radios as described below.

What it looks like when the check succeeds under the 5-second budget (no yellow warning banner, and the wizard has already pre-picked both radios with green “Detected” labels): just click Add.

Screen 2 (auto-detected variant) — when Claude’s check completes cleanly, both radios come pre-set with green Detected badges and there’s no yellow banner. Same “click Add” outcome, no manual configuration needed.

Configure the options like this for Royal MCP (only relevant if you got the fallback screen above, not the auto-detected variant):

• Authentication: Leave Always required selected (usually pre-checked as “Detected”). Every session prompts for OAuth sign-in before Royal MCP tools can run — the correct behavior for a WordPress site.
• OAuth client: Usually pre-selected as “No client ID — register one automatically” with a Detected label — if so, leave it. If you see the third option (“Use Anthropic’s hosted client metadata (Recommended)”) auto-selected instead, either works: DCR is what Royal MCP fully supports today, and Claude silently falls back to DCR anyway if you leave the hosted-metadata option selected. If nothing is auto-detected, choose No client ID — register one automatically manually. (Both scenarios are shown in the videos on this page.)
• Additional request headers: Leave empty. Only used if you want to authenticate with a fixed API key instead of OAuth — see the API-key fallback section below for when that path applies.
• Advanced: Leave collapsed. Not needed for standard Royal MCP setup.

Click Add, then Connect (Path B only)

After Path B, clicking Add does not complete the connection. Claude briefly shows a “Checking connection...” screen while it finalizes the connector, then drops you on the connector detail page.

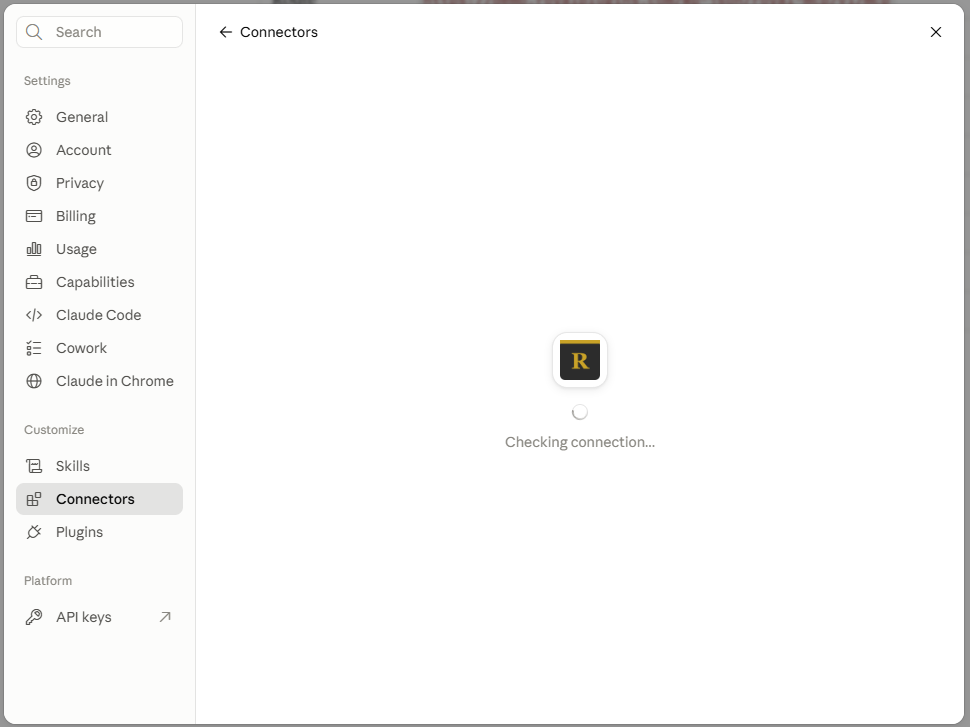

Between Add and Connect — Claude spins briefly while it finalizes the connector.

Then the connector detail page appears with “You started connecting to [connector name] but didn’t finish” and a Connect button. Click Connect — a new tab or dialog opens with the OAuth authorization prompt from your WordPress site.

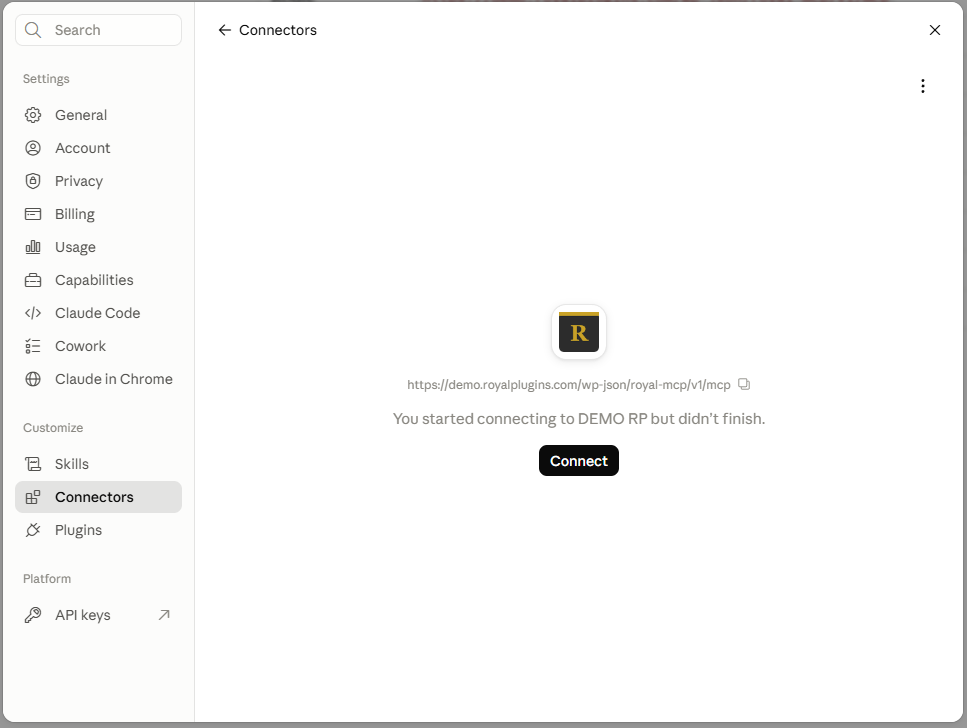

Screen 3 — connector detail page after Add. Click Connect to trigger the OAuth authorization prompt.

If the OAuth prompt doesn’t appear after Connect, click Connect again. The wizard sometimes needs a second attempt.

Authorize on the WordPress-hosted OAuth prompt

You’ll see “Claude wants to connect to your WordPress site” with the scopes listed. Click Authorize. The tab closes and Claude flips the connector to Connected.

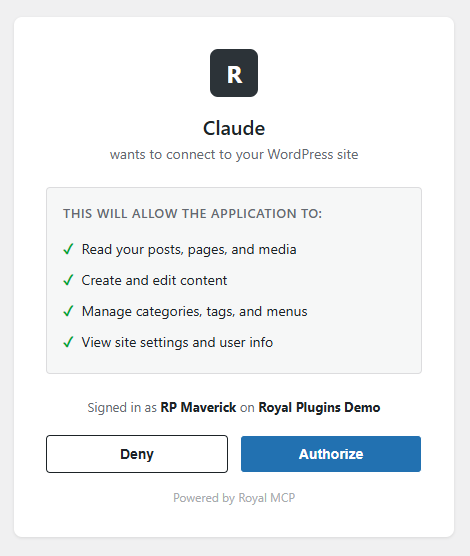

Screen 4 — the WordPress-hosted OAuth authorization prompt. Click Authorize.

Confirm the connector is live and see your tool count

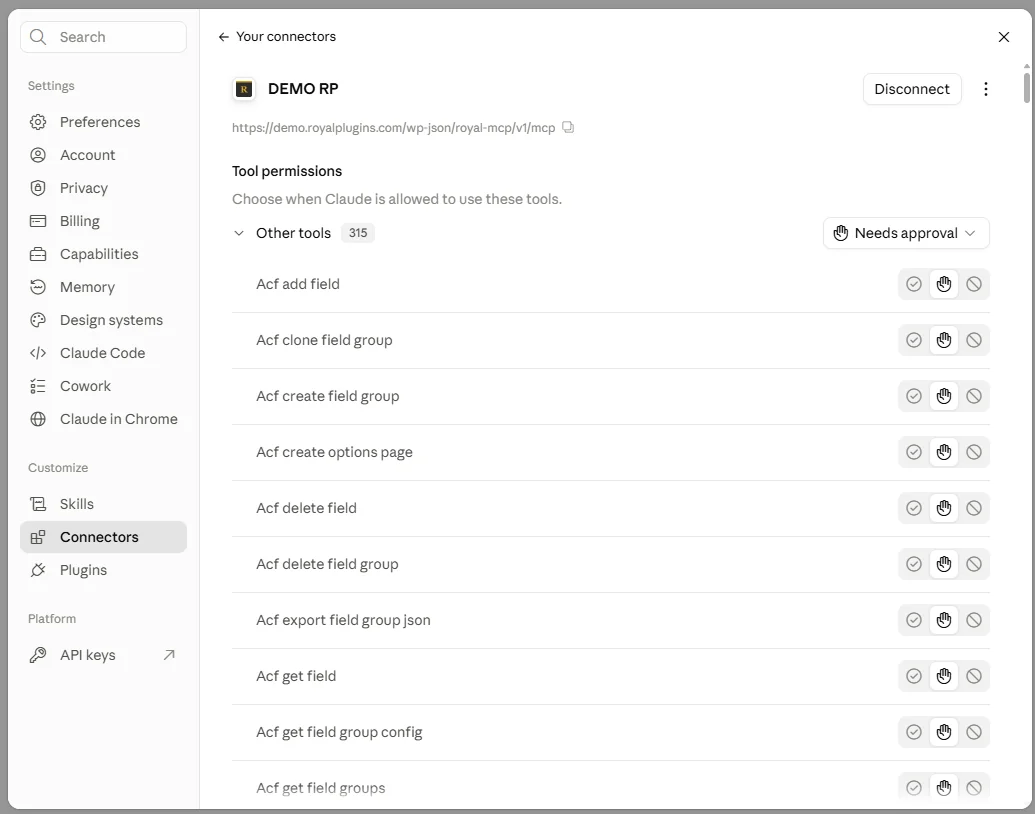

Once you authorize, Claude flips the connector to connected and lands you on the connector detail page. You’ll see your MCP URL, a Disconnect button, and a Tool permissions section listing every tool Royal MCP exposes on your site. The count on the Other tools group is your live tool inventory — it grows automatically as you add integrations (WooCommerce, ACF, Elementor, Divi, and so on). Use the per-row Allow / Ask / Deny controls to scope what Claude can do without asking each time.

Screen 5 — the connected view. Every Royal MCP tool appears here with a per-tool Allow / Ask / Deny control.

Verify in a new chat

Open a new conversation. Click the + button next to the input box → Connectors and confirm your Royal MCP connector toggle is on. Then ask Claude: “Do we have an open connector to example.com?” (replace with your actual site). Claude will call wp_get_site_info against that specific connector and reply with the site’s URL and name. Anchoring on your specific domain is better than a generic “list my recent posts” — if you have multiple sites connected, the generic question will list every connector or pick one ambiguously.

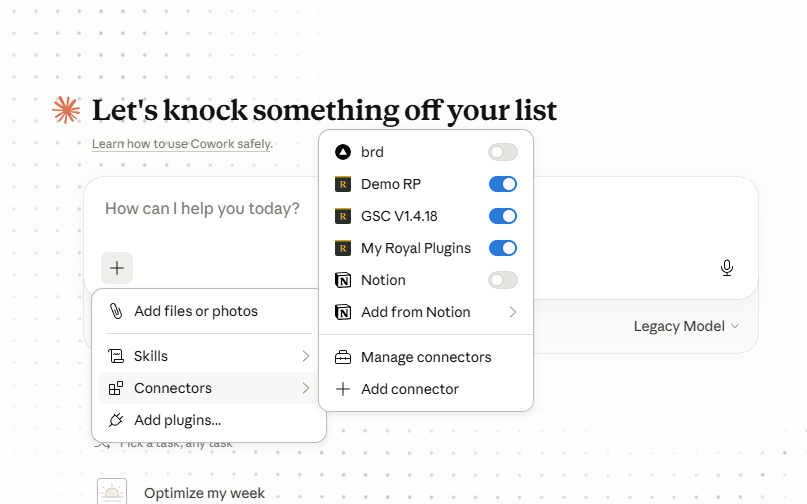

Claude → + button → Connectors. Toggle Royal MCP on per-conversation. Same flow in claude.ai web and Claude Desktop.

Alternate path — forcing the “hosted client metadata” option

If Claude’s wizard didn’t auto-detect your server and you want to try the third OAuth-client option (“Use Anthropic’s hosted client metadata (Recommended)”), it also connects successfully against Royal MCP today. Claude silently falls back to Dynamic Client Registration under the hood when your server doesn’t yet advertise CIMD support — so the end result is the same working connector.

Coming back later — silent reconnect

Once you’ve completed the consent screen once, Claude stores the OAuth token. Every subsequent reconnect on the same Claude account skips the consent step entirely — you click the connector, it goes Connected, you’re back in business. This is what you’ll see day-to-day.

Fallback: connect via API key (Claude Desktop ONLY, not claude.ai web)

The OAuth flow above works for the vast majority of customers. When it doesn’t — typically Cloudflare Bot Fight blocking python-httpx, cPanel ModSecurity returning 406, Imunify360 returning 429, a managed-host WAF, or the upstream claude.ai web token-exchange bug — an API-key path via Claude Desktop is the working escape hatch.

Copy your API key from WordPress

Go to WP Admin → Royal MCP → Settings → General Settings. The WordPress API Key field has the key pre-generated and visible — click Copy. If you want a fresh key (or the field is empty), click Regenerate first; that immediately invalidates the old one. Also confirm the Enable Royal MCP Integration toggle is on.

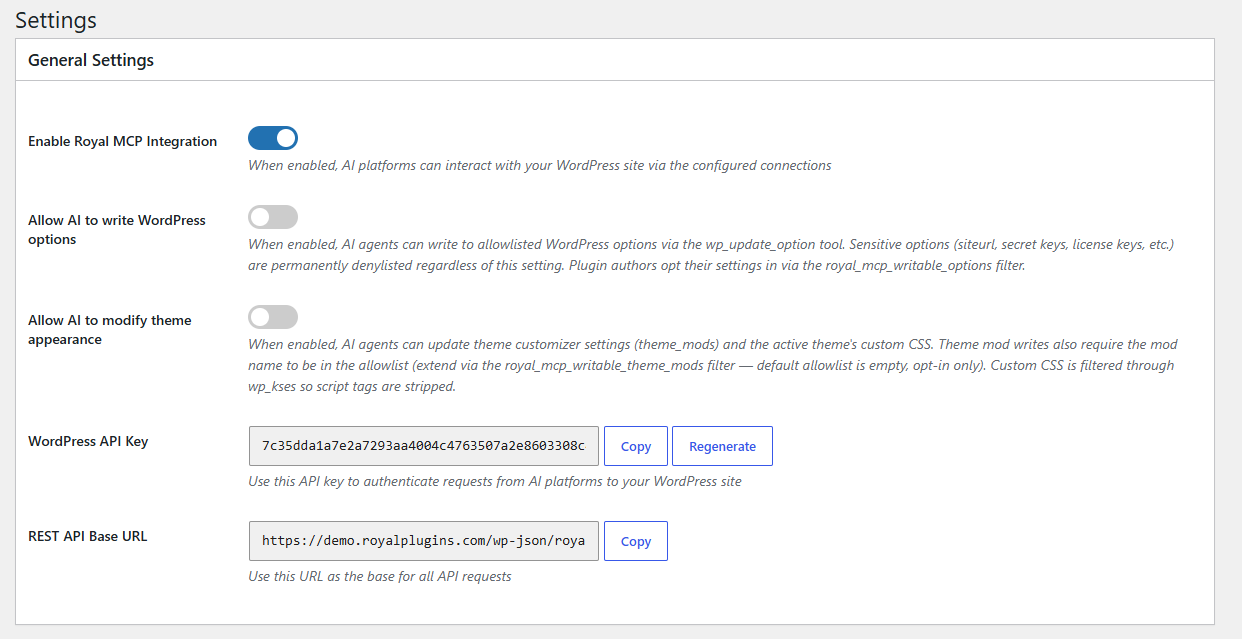

WP Admin → Royal MCP → Settings → General Settings. Copy the WordPress API Key value, or click Regenerate for a fresh one.

Add the connector in Claude Desktop with API key auth

In Claude Desktop, open Settings → Connectors → Add custom connector. Paste your MCP server URL (same as the OAuth path). Newer Desktop builds expose an Advanced / Authentication section where you can choose API Key or paste into a Custom Headers field as Authorization: Bearer your-api-key. If your Desktop build doesn’t show that field, use the mcp-remote wrapper path linked below.

Click Connect — no consent screen

Because you’re using an API key, there’s no OAuth dance, no consent prompt, no browser redirect. Claude tests the key against your MCP endpoint and marks the connector Connected.

Verify in a new chat

Same as the OAuth path — open a new conversation, enable the connector, ask Claude to do something WordPress-related.

Claude Code (Terminal / CLI)

Claude Code is the official Anthropic CLI that runs in your terminal, VS Code, or JetBrains IDE. Connecting Royal MCP to it is a single command. No browser config, no Settings UI — everything happens at the command line.

With OAuth (recommended)

Add the Royal MCP server as a connector with one command. Claude Code will pop open your default browser for the one-time OAuth consent, then store the token in your local config for future sessions.

claude mcp add --transport http royal-mcp https://example.com/wp-json/royal-mcp/v1/mcp

Replace example.com with your actual WordPress site. Then start a Claude Code session, and on the first MCP call your browser will open with the OAuth consent screen. Click Authorize. The terminal session receives the token and the connector becomes active.

Without OAuth — API key path

Same as the browser case — use this when OAuth is blocked by your host. Copy your API key from WP Admin → Royal MCP → Settings → General Settings → WordPress API Key, then pass it via the --header flag:

claude mcp add --transport http royal-mcp https://example.com/wp-json/royal-mcp/v1/mcp \
    --header "Authorization: Bearer your-api-key-here"

No browser, no consent screen, no OAuth state. Claude Code attaches the header to every request.

Verify your connection with /mcp

Inside any Claude Code session, type /mcp and press Enter. You’ll see the Manage MCP servers screen — every connector you have registered, grouped by scope (Project MCPs, User MCPs, claude.ai), with each one showing its connection state and tool count.

Claude Code /mcp output: every registered connector with status, grouped by scope.

Use the up/down arrow keys to navigate. Each connector shows one of these states:

• ✓ connected — working; tool count is shown next to the status
• ▵ needs authentication — OAuth token is stale, expired, or was never completed
• × failed — the server didn’t respond or returned an error; run claude --debug to see logs

Hover over any connector (green ✓ or red × or yellow ▵) and press Enter to get connector-specific options like Authenticate or Disable. Esc backs out at any level.

If you prefer a non-interactive view, you can also list servers from the shell:

claude mcp list

Re-authenticate a stale connector

When a connector shows ▵ needs authentication or × not authenticated, you don’t need to remove and re-add it. Just refresh the OAuth token in place:

1. Run /mcp in any Claude Code session.
2. Arrow down to the affected connector and press Enter.
3. You’ll see the connector detail screen with Status, Auth state, URL, Config location, and options:

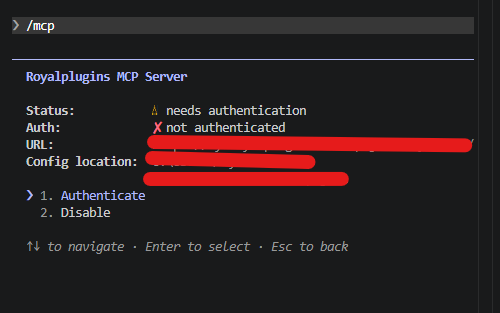

Per-connector options when a connector needs re-authentication. Arrow down to Authenticate and press Enter.

4. Select Authenticate and press Enter.
5. Claude Code opens your default browser for the OAuth consent screen — same flow as the initial setup. Click Authorize.
6. The terminal receives the fresh token and the connector flips back to ✓ connected.

After You Connect — First Things to Try

Royal MCP exposes the full WordPress data model to Claude: posts, pages, media, users, comments, taxonomies, WooCommerce products and orders (if WooCommerce is active), plus the Royal Plugins-specific tools (GuardPress security data, SiteVault backups, ForgeCache controls, etc.) for any premium plugins you have installed.

Try a few of these in your first conversation. Anchor each prompt with your site domain — if you have multiple sites connected, this tells Claude exactly which connector to use:

• “On example.com, show me my five most recent posts and their categories.”
• “On example.com, create a draft post titled ‘Notes from today’ with this content: [paste].”
• “Which pages on example.com have the most internal links pointing at them?”
• “Search example.com’s media library for images of [topic] uploaded this year.”
• “What plugins are installed on example.com and which ones have updates available?”

If a request fails, the first place to look is WP Admin → Royal MCP → Activity Log. Every Claude request lands there with the exact tool name, parameters, and result — that’s your single source of truth for what happened on the server.

If Something Goes Wrong

If a connector won’t connect or a tool keeps failing, work through this short list before opening a support thread:

1. Run the Step 0 30-second edge probe. Almost every “Claude won’t connect” issue traces back to your hosting edge (Cloudflare, managed-host WAF, ModSecurity, SiteGround nginx). Step 0 tells you in 30 seconds whether the problem is your host or your plugin.
2. Check your Activity Log. If you see oauth:authorize rows but no oauth:token, the token exchange is failing — usually a host blocking python-httpx. If you see nothing at all, the request isn’t reaching WordPress.
3. Confirm plugin version. The latest Royal MCP includes fixes for several common setup issues. Check Plugins → Updates for a newer version before troubleshooting further.
4. Restart your Claude surface. Stale OAuth tokens are the second-most-common cause of “suddenly stopped working.” Sign out of claude.ai / quit Claude Desktop / restart your terminal session, then reconnect.

For deeper diagnostics including curl probes you can run yourself, see the curl deep-dive guide.

Still Stuck? Two Support Paths

If you’ve worked through the checklist and your connection still fails:

Community Support (free) — wp.org Plugin Forum

Post a new thread at wordpress.org/support/plugin/royal-mcp/. The Royal Plugins team monitors the forum regularly. Include the diagnostic info below.

Premium Support (paid) — direct one-on-one help

For priority response (24-hour SLA) and hands-on diagnostic help, our Premium Support tier is $149/year. Direct email, full refund if we can’t resolve your issue.
